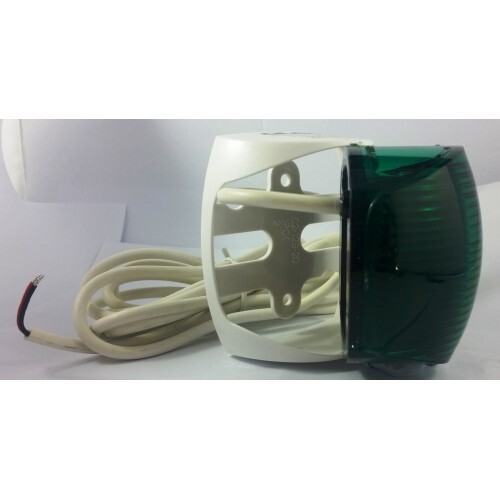

QLED has released to the Australian marine market a comprehensive range of LED Navigation lamps for vessels up to 20m in length. This lightweight design offers power savings of up to 90% and without bulb filaments to break, has the added benefit of zero maintenance.

The QLED Navigation lights offer a minimum visibility to 2NM, maintained even in low voltage situations. This new modern design is far smaller and lighter than its competitors, eliminating the installation problems typical of the 20m traditional bulb type units. The range boasts a Bi-colour option and a complete LED Streaming/Deck Light combination.

Features

  •   Fully approved for vessels 20M or less  USCG  COLREG  ABYC  CE
  •   Certificates available Significant power savings of up to 90%
  •   Minimum 2NM
  •   Multi-Volt 9~33vdc
  •   112.5 degree
  •   Available in Red and Green

(QAL77-S33-B1125STBM)

  •    Fully approved for vessels 20M or less  USCG  COLREG  ABYC  CE
  •       Certificates available Significant power savings of up to 90%
  •       Zero maintenance & long service  High visibility to International Standards
  •       Minimum 2NM
  •       Visibility  Sealed to IP67 certification
  •       {Sealed to IP66 for 360 degree models}  Shock & Vibration Proof
  •       Multi-Volt 9~33vdc  Operating temp -20*~+60*C
  •       Supplied with 2M Tinned Copper Cable
  •       Port Light Specifications (RED)
  •       112.5 degree
  •       2NM Min.Visible distance
  •       Vertical mounting
  •       0.18amps @12 v
  •       Lamp Weight 150g approx.
  •       Cable Weight 100g approx
  •       88h x 78w x 50d {mm}
SKU QAL77-S33-B1125STBM
Barcode # 77-S33-B1125PRTM
Brand QLED
Shipping Weight 0.2500kg
Shipping Width 0.078m
Shipping Height 0.050m
Shipping Length 0.088m
Shipping Cubic 0.000343200m3
Unit Of Measure ea

3 Year Australia only warranty, 1 year limited warranty in commercial operations
