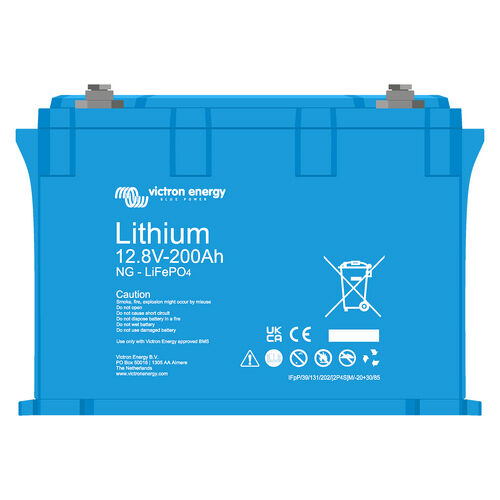

Victron Lithium LiFePO4 Battery 12.8V/200Ah NG Series
Manufacturer Code: BAT512120620
- Integrated shunt for real-time battery data and accurate state-of-charge calculations
- Automatic configuration and monitoring through the VictronConnect app, a GX device, or the VRM portal
- Increased environmental protection with an IP65 ingress rating
- Very low self-discharge rate of up to 2% per month
- Long cycle life — up to 5,000 cycles at 50% depth of discharge (DoD)
- Built-in voltage and temperature protection
- Bluetooth connectivity for convenient monitoring and control via VictronConnect
- Flexible mounting options — install with straps or brackets, and can be positioned on its side
- Repairable design featuring a removable battery cover
- Compliant with UL1973, UL9540A and pending IEC62619 safety standards
- Built for Durability and Safety
$1,511.54
SAVE $494.46 (25%)
In Stock
Victron Lithium LiFePO4 Battery 12.8V/200Ah NG Series with built-in voltage and temperature protection
The Victron Lithium LiFePO4 Battery 12.8V/200Ah NG Series delivers high-efficiency energy storage using advanced Lithium Iron Phosphate (LiFePO4) technology. With a nominal capacity of 200Ah and a 12.8V output, it provides dependable power for off-grid solar systems, marine vessels, recreational vehicles, and automotive installations. Designed for long service life, excellent energy density, and reliable performance, it is an ideal choice for demanding applications.
Built for Durability and Safety
Engineered for harsh environments, the Lithium NG battery features an IP65 rating for resistance to dust and water. Its rugged construction supports secure installation with mounting brackets, ensuring stability in marine and mobile applications. With a very low self-discharge rate (≤3% per month), the battery retains its charge for extended periods, improving long-term reliability and reducing maintenance demands.
Flexible Integration for Scalable Energy Systems
The Victron Lithium NG battery is designed for easy integration into both small and large power systems. It can be installed in series, parallel, or combined series/parallel configurations, allowing you to scale storage capacity to suit your requirements. With support for up to 50 interconnected batteries, system capacity can reach an impressive 384 kWh — offering room to expand as your energy needs grow.
Product Inclusions
The Victron Lithium LiFePO4 Battery 12.8V/200Ah NG Series comes supplied with:
Victron 12.8V/200Ah NG Series LiFePO4 Battery
Fully assembled with integrated shunt, internal BMS protections, and removable serviceable cover.
Protective terminal covers
Ensures safe handling and reduces accidental contact with battery terminals.
Mounting straps
For secure installation or side-mount positioning. (Mounting brackets available separately if preferred.)
Pre-installed Bluetooth monitoring module
Allows immediate connection to the VictronConnect app for setup and real-time system insights.
User Documentation
Includes safety guidelines, installation recommendations, and monitoring instructions via VictronConnect, GX devices, or VRM portal.
Features
- Integrated shunt for real-time battery data and accurate state-of-charge calculations
- Automatic configuration and monitoring through the VictronConnect app, a GX device, or the VRM portal
- Increased environmental protection with an IP65 ingress rating
- Very low self-discharge rate of up to 2% per month
- Long cycle life — up to 5,000 cycles at 50% depth of discharge (DoD)
- Built-in voltage and temperature protection
- Bluetooth connectivity for convenient monitoring and control via VictronConnect
- Flexible mounting options — install with straps or brackets, and can be positioned on its side
- Repairable design featuring a removable battery cover
- Compliant with UL1973, UL9540A and pending IEC62619 safety standards
- Built for Durability and Safety
(VICBAT512120620)
| Category | Specification | Details |
| Model Version | BAT512120620 | 12.8V 200Ah Lithium LiFePO4 Battery, NG Series |
| Voltage | Nominal Voltage | 12.8 V |
| Capacity | Nominal Capacity | 200 Ah @ 25°C |
| Energy | Nominal Energy | 2560 Wh @ 25°C |
| Cycle Life | Cycle Life at 80% DoD | 2500 cycles |
| Discharge | Max Continuous Discharge Current | 200 A (1C) |
| Max Pulse Discharge Current (10s) | 400 A (2C) | |
| End of Discharge Voltage | 11.2 V | |
| Charge | Max Continuous Charge Current | 200 A (1C) |
| Max Pulse Charge Current (10s) | 400 A (2C) | |
| Protection | Protection Class | IP65 |
| Temperature | Operating Temperature (Discharge) | -20 °C to +50 °C |
| Operating Temperature (Charge) | +5 °C to +50 °C | |
| Storage Temperature | -45 °C to +70 °C | |
| Self-Discharge | Rate | ≤ 3% per month @ 25 °C |
| Mounting | Options | Strap or mounting brackets |
| Physical | Dimensions (H x W x D) | 235 x 341 x 160 mm |
| Weight | Total | 37 kg (estimated) |

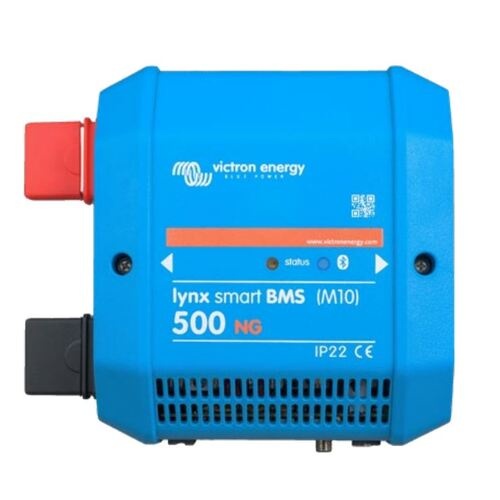

| Battery Management System (BMS) | Required BMS | Lynx Smart BMS NG 500 A / 1000 A (separate purchase) |
| Standards | Safety Standards | UL1973, UL9540A, IEC62619 (pending) |
| EMC | EN 61000-6-3, EN 61000-6-2 | |
| Automotive | ECE R10-6 (pending) |
| SKU | VICBAT512120620 |
| Barcode # | BAT512120620 |
| Brand | Victron |
| Shipping Weight | 37.0000kg |
