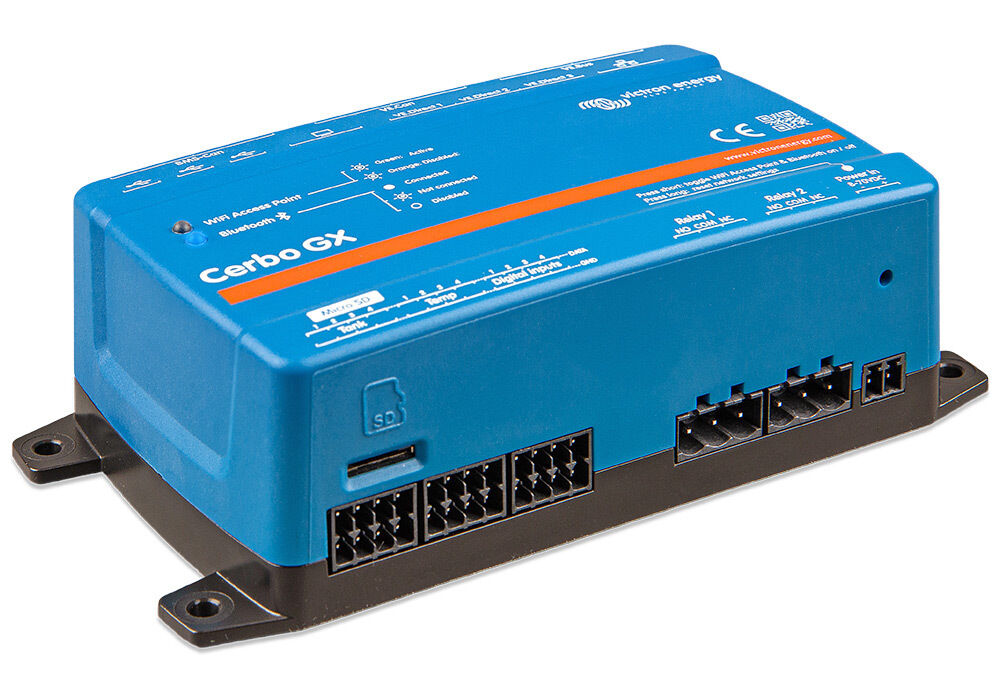

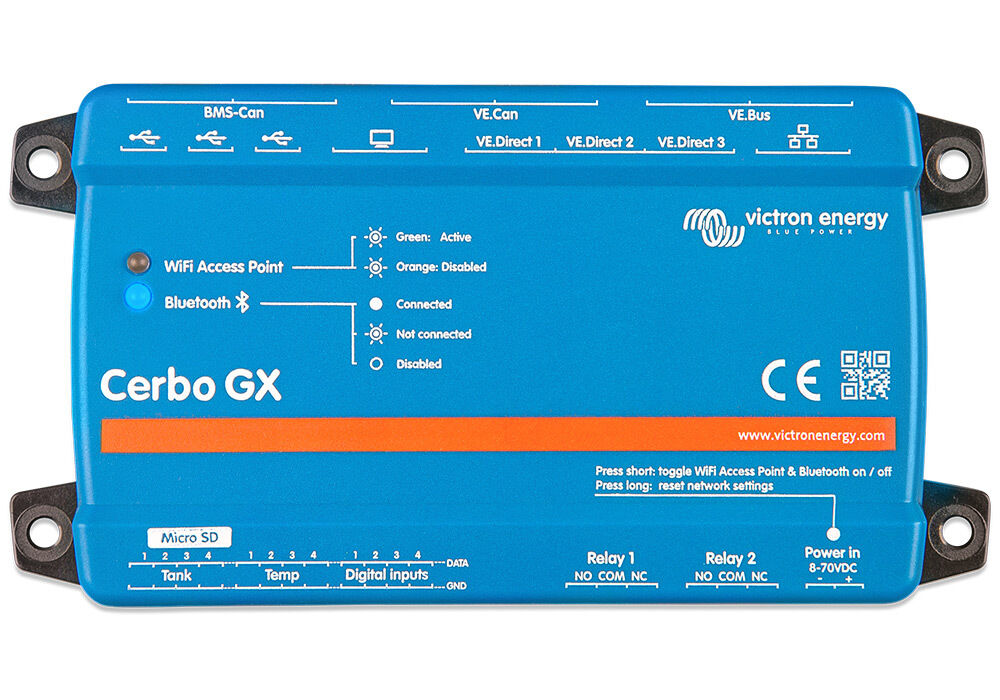

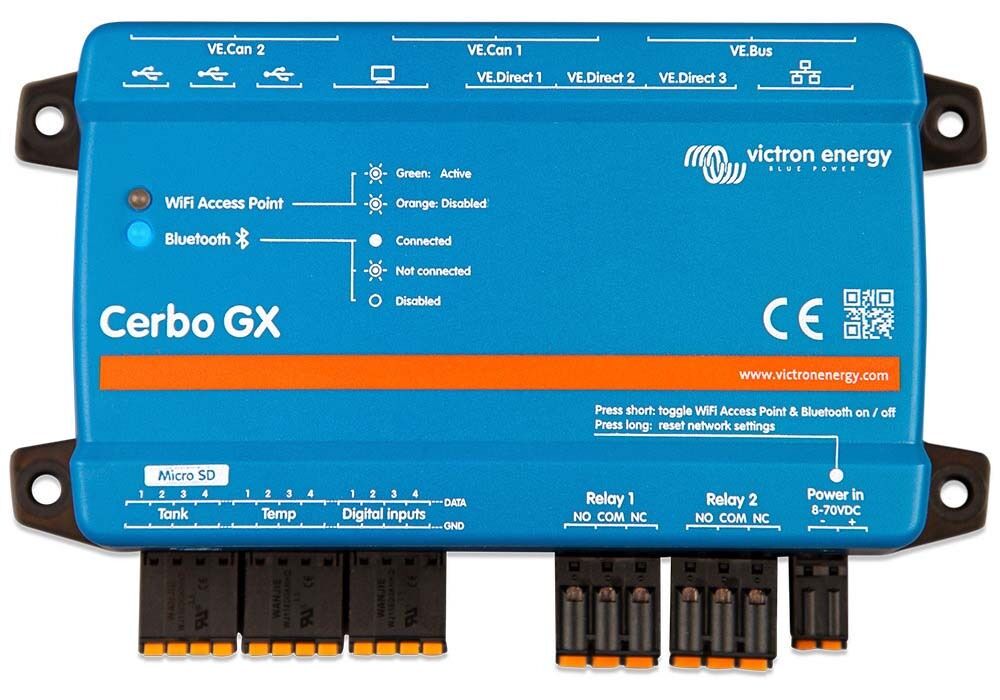

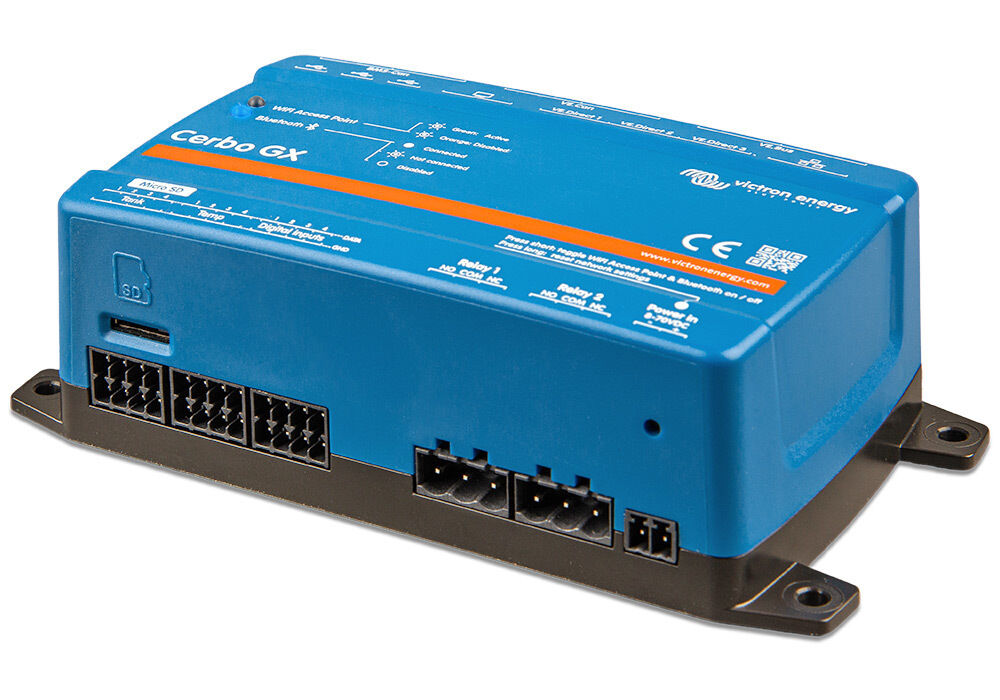

The Victron Cerbo GX MK2 is a next-generation system communication centre featuring dual CAN-bus ports, built-in Wi-Fi, Bluetooth, Ethernet and multiple connection.
The Victron Cerbo GX MK2 is a powerful central communication hub for renewable energy, marine and off-grid systems. Designed to integrate all core components — such as inverters, battery monitors, solar chargers and third-party devices — it offers real-time system visibility and control from onboard displays, the VictronConnect app, or remotely via the Victron Remote Management (VRM) portal.
fraron.de

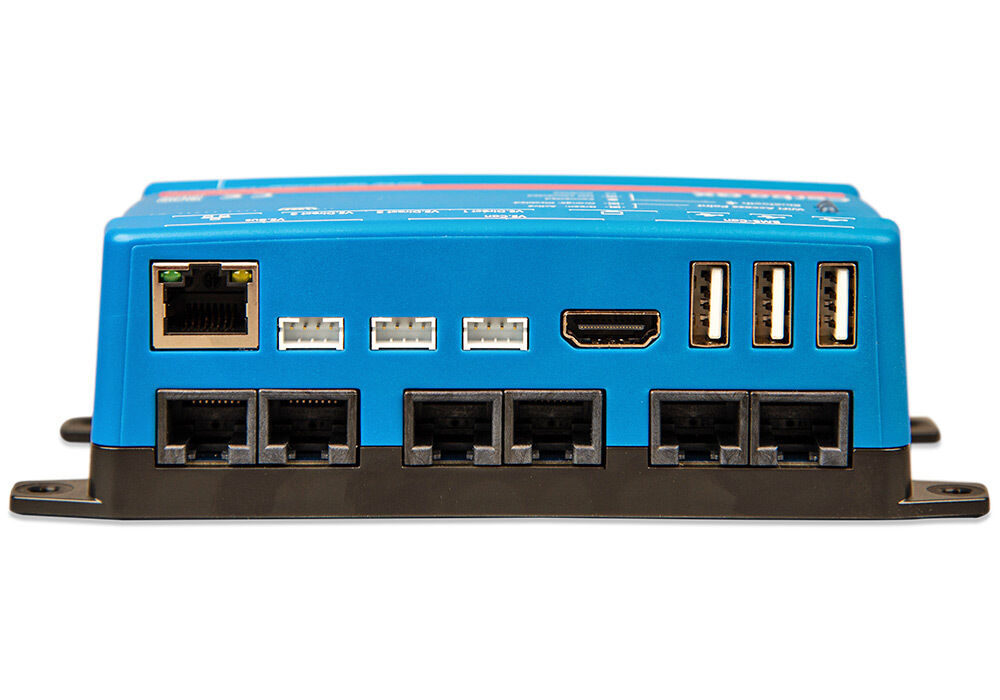

Upgraded from the original Cerbo GX, the MK2 version includes two fully functional VE.Can ports (one isolated), three fully functional USB ports, rotated RJ45 connections for easier cable management, and pulse-counting capable digital inputs — providing enhanced flexibility and connectivity for advanced system configurations.
communityarchive.victronenergy.com
+1
With integrated Bluetooth and Wi-Fi, plus support for Ethernet and Venus OS, the Cerbo GX MK2 ensures effortless local setup and global monitoring. Whether you’re optimising power harvest, monitoring battery status or controlling generator start/stop functions, this unit centralises system intelligence in a compact and robust controller.
Product Inclusions:
- Victron Cerbo GX MK2 Communication Centre — central controller for system monitoring and control
- DC power input cable with inline fuse for reliable and safe power connection
- Mounting hardware — for wall or DIN rail installation
- Protective covers for communication ports
- Quick start guide & documentation — for installation, connectivity and setup instructions
- Access to the VictronConnect app and VRM Portal for monitoring and configuration
Optional accessories such as GX Touch displays, NMEA 2000 adapters, additional sensors and cables are sold separately.
Features
- Comprehensive System Communication Centre
- Built-In Connectivity
- Dual Fully Functional CAN-bus Ports
- Supports Real-Time Monitoring & Control
- Versatile Inputs and Outputs
(VICBPP900451100)
| User Interface | |
| Display | No. Optional touch display |
| Remote Console | Yes |
| Buzzer | Yes |
| Victron Comm Ports | |
| VE.Direct ports (always isolated) |
3 |
| VE.Bus (always isolated) |
2 paralleled RJ45 sockets |
| VE.Can | Yes VE.Can 1 isolated VE.Can 2 non-isolated |
| Communication | |
| USB | 3 USB Host ports |
| Ethernet |
10/100 RJ45 socket - isolated except shield |
| WiFi | built-in |
| Bluetooth Smart | Yes |
| Micro SDcard slot | SDHC cards up to max. of 32GB |
| Second CAN-bus port (BMS-Can) | Yes - see VE.Can |
| BMS-Can port | No |
| Built-in RS485 | No |
| I/O | |
| Programmable relay | 2 x NO/NC DC up to 30VDC: 6A DC up to 70VDC: 1A AC: 6A, 125VAC |
| Resistive tank level inputs | 4 |
| Temperature sense inputs | 4 |
| Digital Inputs | 4 |
| Performance | |
| CPU | Dual Core |
| RAM | 1GB |
| Max. VE.Direct devices | 15 |
| Other | |
| Supply voltage | 8 - 70 VDC |
| Mounting | Wall or DIN rail (35mm) mountable |
| Outer dimensions ( h x w x d ) |
78 x 154 x 48 mm |
| Operating temperature | -20 to +50°C |
| Battery backupped clock | Yes |
| 5V output | No |
| SKU | VIC.BPP900451100 |
| Model # | BPP900451100 |
| UPC/EAN | 8719076057833 |
| Brand | Victron Energy |
| Shipping Weight | 0.4160kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.120m |
| Shipping Length | 0.220m |
| Shipping Cubic | 0.001584000m3 |
| SKU | VICBPP900451100 |
| Barcode # | BPP900451100 |
| Brand | Victron |
| Shipping Weight | 0.4160kg |
