The Victron Lynx Smart BMS NG (M10) is an advanced battery management system specifically engineered for use with Victron Lithium NG battery banks. 500A & 1000A Options

The Victron Lynx Smart BMS 500 NG (M10) and 1000NG (M10) are dedicated Battery Management System (BMS) designed to safeguard, monitor and manage Victron Lithium NG battery installations. Built with a 500 A continuous contactor, this unit acts as both a protective safety system and a remote-controllable main system switch. It incorporates a pre-charge circuit to prevent high inrush currents when connecting capacitive loads such as inverters, eliminating the need for external pre-charging devices.
Victron Energy
+1

The Lynx Smart BMS NG supports 12 V, 24 V and 48 V systems, offering seamless integration with Victron’s communication ecosystem — including Bluetooth monitoring via the VictronConnect app, and connectivity to GX devices for local and remote system insight via the VRM portal. It’s an ideal solution for managing large-scale battery banks and ensuring safe, efficient energy operation.

Product Inclusions:

1 x Lynx Smart BMS (500A or 1000A)
Victron Lynx Smart BMS (500A or 1000A) — advanced Battery Management System with contactor
Mounting hardware — fixings for secure installation
Protective port covers — safeguard electrical connections during setup and operation
Quick start guide & user documentation
Bluetooth compatibility — for system monitoring via VictronConnect

Note: Cables, GX device (e.g., Cerbo GX) and additional Lynx Distributor modules are sold separately.

Features

Built-in 500A or 1000A contactor
Pre-charge circuit
Supports 12 V, 24 V and 48 V systems
Bluetooth connectivity for setup and monitoring
VE.Can / GX device integration

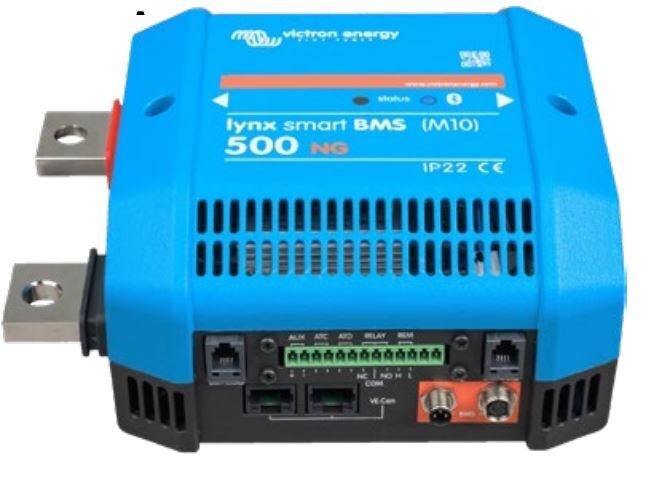

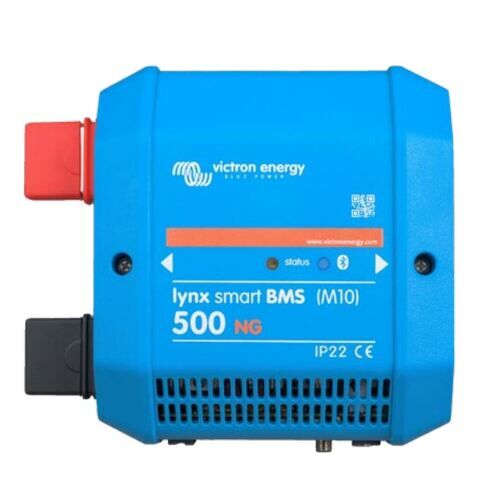

(VICLYN0341702)

Lynx Smart BMS NG	500 A (M10) (LYN034160310)	1000 A (M10) (LYN034170310)
POWER
Battery voltage range	9 – 60 VDC
Maximum input voltage	75 VDC
Supported system voltages	12, 24 or 48 V
Reverse polarity protection	No
Main safety contactor continuous current rating	500 A continuous	1000 A continuous
Main safety contactor peak current rating	600 A for 5 minutes	1200 A for 5 minutes
Power consumption OFF mode	0.3 mA for all system voltages
Power consumption in Standby mode	Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode	Approx. 2.6 W (217 mA at 12 V) depending on the state of the relays	Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays
Minimum load resistance for pre-charging	10 Ω and above for 12 V systems 20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating	1.1 A continuous, protected by resettable fuse
Allow-to-charge port Maximum current rating	0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port Maximum current rating	0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT) Maximum current rating	2 A at 60 VDC
CONNECTIONS
Busbar	M10 (Torque: 33 Nm) – can be combined with all M10 Lynx products
VE.Can	RJ45
I/O	Removable multi-connector with screw terminals
Battery BTV cables	Male and female circular 3-pole connector with M8 screw ring Up to 50 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules)	RJ10 (cable ships with each Lynx Distributor)
PHYSICAL
Enclosure material	ABS
Enclosure dimensions (h x w x d)	190 x 180 x 80 mm	230 x 180 x 100 mm
Unit weight	1.9 kg	2.7 kg
Busbar material	Tinned copper
Busbar dimensions (h x w)	8 x 30 mm
ENVIRONMENTAL
Operating temperature range	-40 °C to +60 °C
Storage temperature range	-40 °C to +60 °C
Humidity	Max. 95 % (non-condensing)
Protection class	IP22
STANDARDS
Safety	EN-IEC 63000:2018
EMC	EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS	NEN-EN-ISO 9001:2015
SKU	VIC.LYN034170310
Model #	LYN034170310
UPC/EAN	8719076063568
Brand	Victron Energy
Shipping Weight	3.0000kg
Shipping Width	0.110m
Shipping Height	0.190m
Shipping Length	0.300m
Shipping Cubic	0.006270000m3
