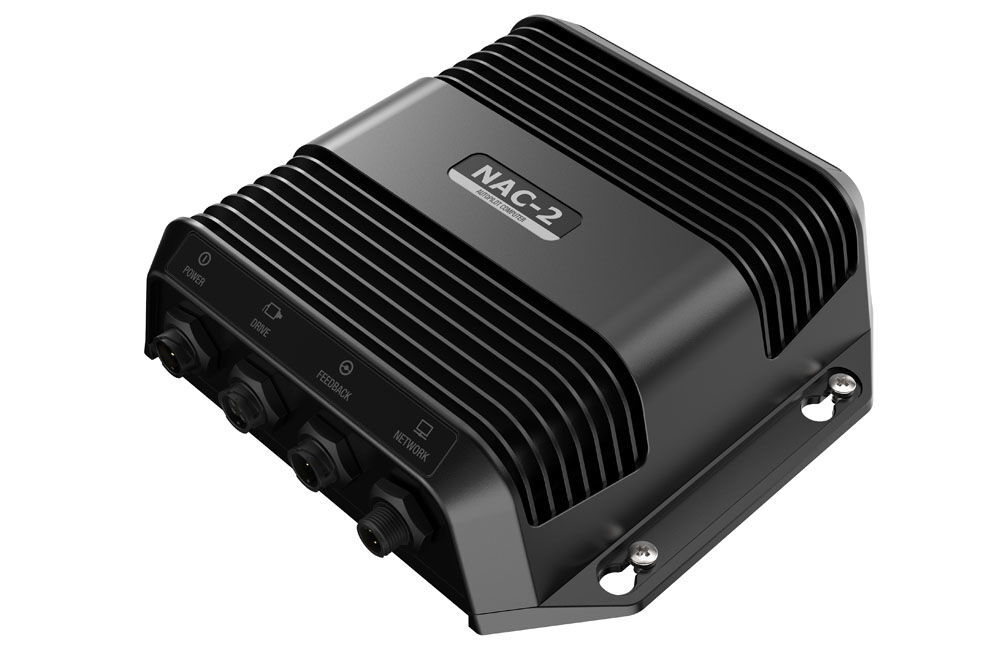

NAC-2 Autopilot Computer: Compact and Reliable Autopilot Core

The NAC-2 is a versatile autopilot computer ideal for boats up to 10 meters (35 feet) in length. It provides dependable, low-current steering control with straightforward integration into modern marine electronics systems.

Plug-and-Play Installation

Enjoy hassle-free setup with plug-and-play connectors that significantly reduce wiring requirements. Industry-standard NMEA 2000® networking enables quick connections to heading sensors, rudder feedback units, dedicated autopilot controllers, and multifunction displays positioned anywhere on board.

Reliable Low-Current Drive Support

Engineered for smaller vessels, the NAC-2 reliably powers a range of drive systems, including:

  • Low-current reversible pumps like the Simrad RPU80
  • Mechanical drives such as the Simrad SD10
  • Hydraulic linear rams, including the HLD350 series
  • Solenoid-controlled valves

This ensures smooth, precise autopilot performance without overwhelming power demands.

Virtual Rudder Feedback for Simplified Systems

Simrad's innovative Virtual Rudder Feedback (VRF) technology eliminates the need for a separate physical rudder feedback sensor on most outboard and sterndrive (I/O) planing-hull boats. This smart feature lowers installation cost and complexity while delivering accurate steering response—especially useful where mechanical constraints make traditional sensors difficult to fit.

For vessels requiring a dedicated sensor, the NAC-2 fully supports SimNet or NMEA 2000® connected units like the Simrad RF25, as well as standard resistive rudder feedback sensors.

Choose the Simrad NAC-2 for an efficient, easy-to-install autopilot solution that combines proven reliability with modern convenience on mid-sized powerboats.

Features



  • Reliable autopilot performance based on Continuum Steering technology
  • Recommended for boats up to 10 metres (35 feet) in length
  • Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Virtual rudder feedback for simplified installation aboard outboard and sterndrive boats
  • Supports Simrad RF25 rudder feedback units
  • Plug-and-play connectors for easy installation
  • NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

(000-13249-001)

SKU 000-13249-001
Brand Navico
Shipping Weight 3.0000kg
