The HALO 3000 radar offers an unparalleled radar experience with 130W of power, up to 96 nautical miles of range, and advanced features for safer navigation.

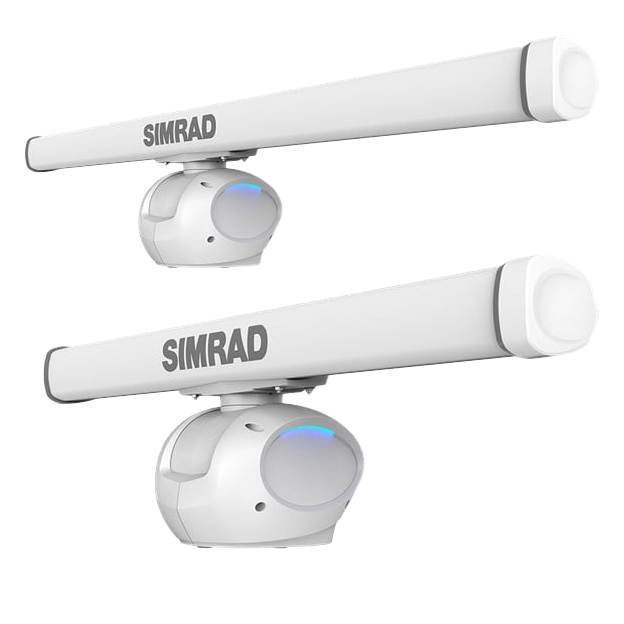

The Simrad HALO 3000 Radar Array is a powerful and sophisticated radar system that offers an unparalleled experience on the water. With an impressive 130W of power, equivalent to a 25KW magnetron radar, this radar delivers an unrivalled combination of short- and long-range coverage, allowing you to see targets from six meters (20 feet) out to an impressive 96 nautical miles with exceptional clarity. This is made possible by the radar's pulse compression technology, which also enables confident navigation through marinas and provides superior storm and hazard detection across a greater distance.

One of the standout features of the HALO 3000 is its intuitive interface, which ensures even novice users can operate the radar with ease. The radar offers four Preset Modes – Harbour, Offshore, Bird, and Weather – that require no manual tuning, making navigation easier and more efficient. Additionally, the radar boasts an array of new features that make navigation safer and provide peace of mind. The ZoneTrack™ feature allows you to track up to 50 vessels within a defined area, automatically detecting their course and speed. The Dangerous Target Alerts highlight the range, graphical bearing, and heading of other vessels relative to yours, while the VelocityTrack™ Doppler technology shows targets colour-coded for easy identification of potential threats at a glance.

In terms of design, the HALO 3000 is available in four and six foot array sizes and is equipped with an Ethernet connection for easy connectivity. The radar is also designed to be ready instantly from standby and can power on in just 16-25 seconds, making it ideal for situations where quick reaction times are crucial.


  • Antenna Radar Array
  • HALO Radar Power Supply
  • HALO Radar Pedestal Only
  • HALO Power and Ethernet Cable - 20m


  • 50W power for longer range and higher-resolution target detection
  • See targets from 6 meters to 96 nautical miles
  • Advanced pulse compression technology with beam sharpening
  • Simultaneous Dual Range operation
  • Easy operation with Harbour, Offshore, Weather, and Bird modes
  • Track up to 50 targets with ZoneTrack
  • VelocityTrack Doppler technology for collision avoidance
  • Dangerous Target Alerts for radar and AIS targets
  • Ready instantly from standby, and in 16-25 seconds from power-on
  • Available in 4 and 6 foot arrays


Approvals FCC/IC/RED Type Certification; EU RED: Emissions compliant to SM1541-4 and EN302-248 V2.1.1
Connectivity Ethernet, NMEA 0183
Electrical Power Consumption, max. 250 W; typical 45-75 W; Recommended Fuse Rating 25 A for 12 V systems or 15 A for 24 V; Supply Voltage Radar system input 12 or 24 V DC into the RI-50
Environment Operating Temperature Range -25°C to +55°C; Waterproof rating IPX6
MFD Compass Safe Distance STD. 1.0 m; Dimensions 4.73 ft / 1443 mm / (56.81”)
Physical Dimensions 324 mm x 429 x 339 mm; Weight 30 kg (66.1 lbs)
Radar Beam width 1.8°+/-10% (-3 dB width) – 1.3° with Beam sharpening mode on; Max Range, scale 96 nm; Max Operating Wind Speed 80 Knots; Min Range, scale 75 m (300 ft); Radar Modes Head Up, North Up; Radar Technology Pulse Compression; Rotation speed 16 to 48 rpm
Other Warranty Period 2 Years; Interface Simrad MFD
Brand Simrad

2 Year Manufacturer Warranty
